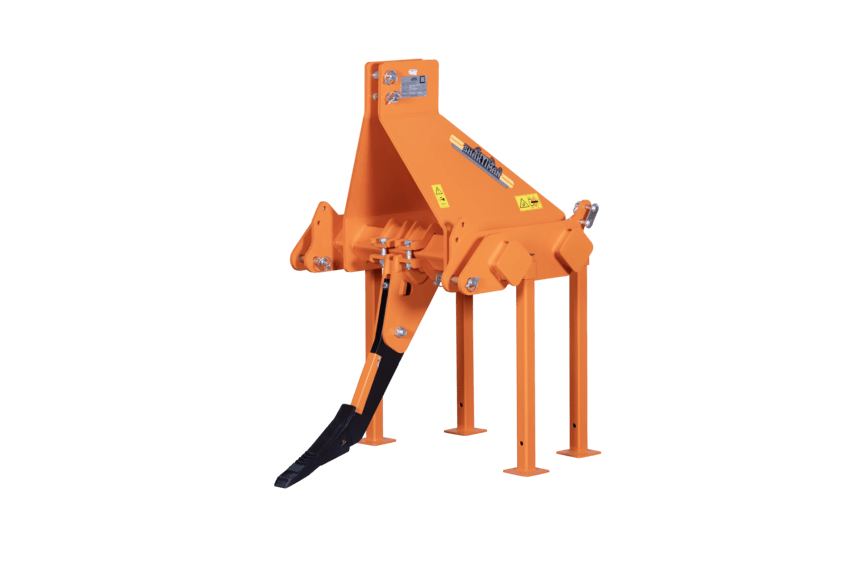

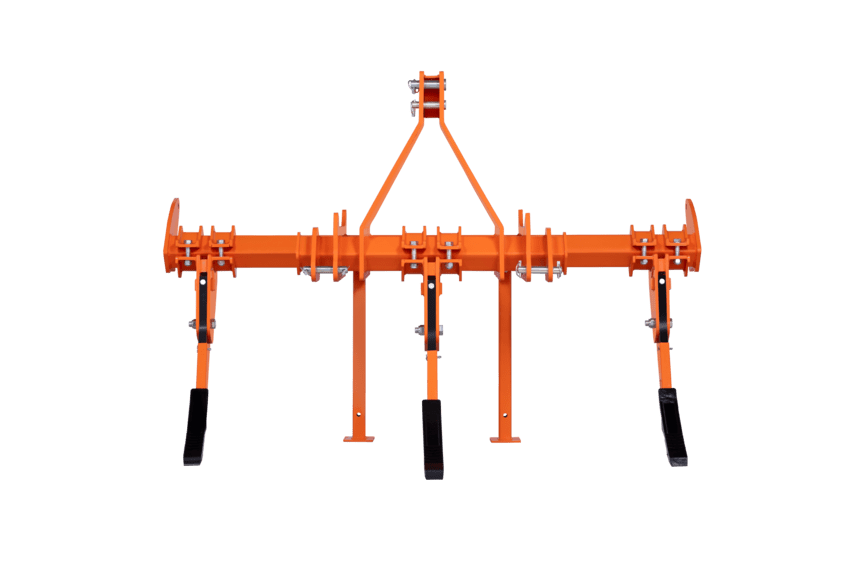

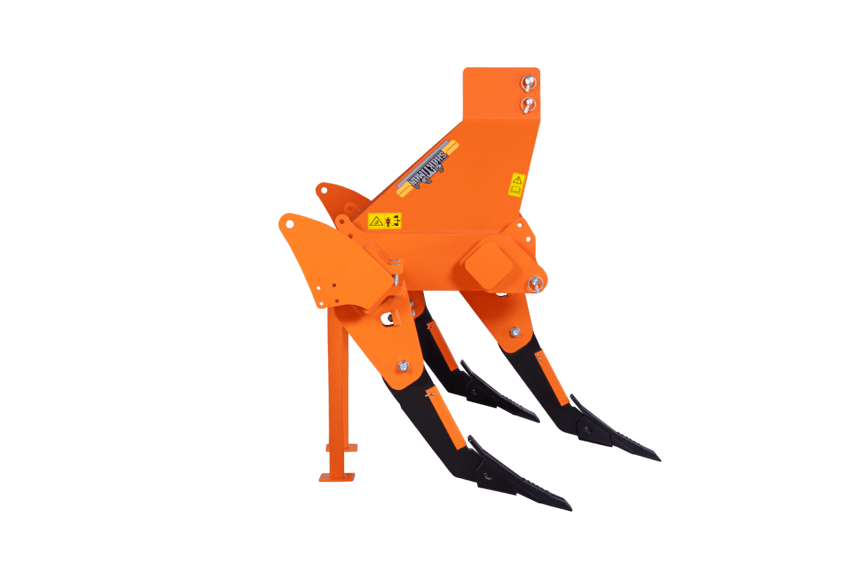

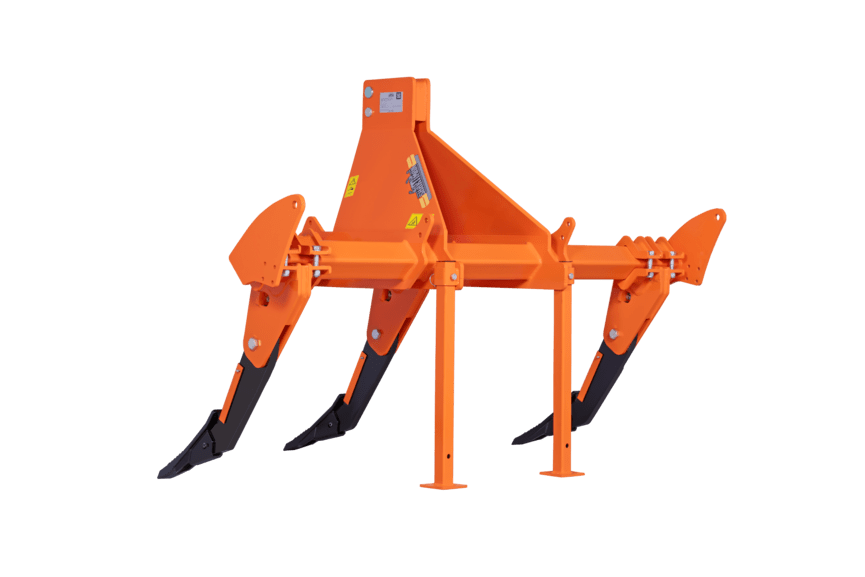

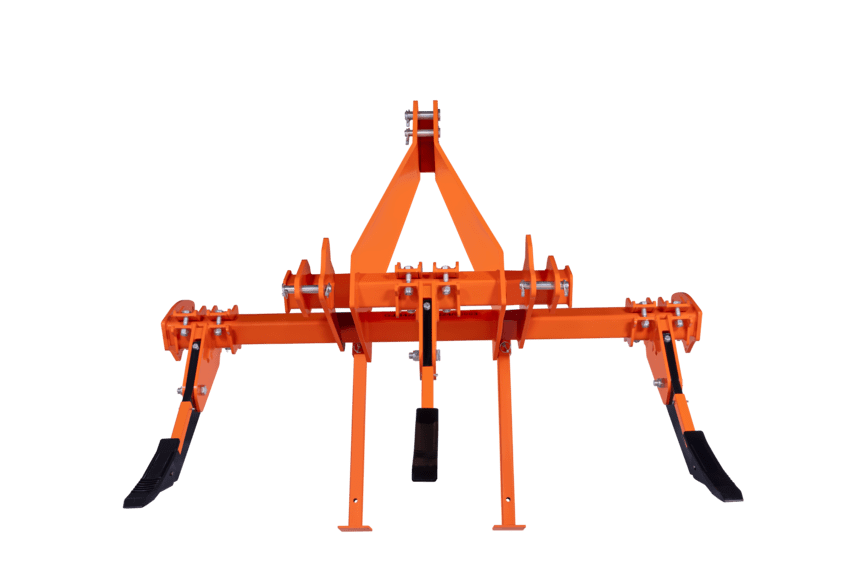

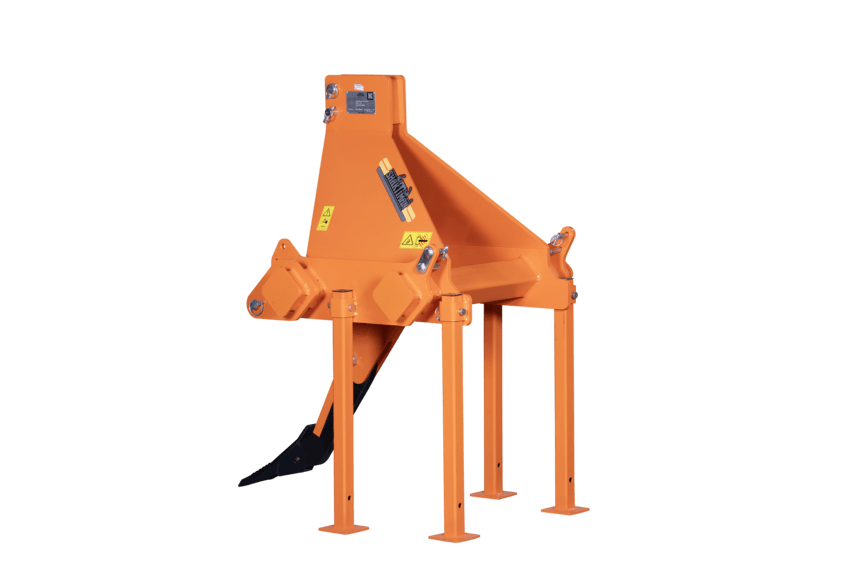

Subsoiler – 3, 2, 1 tines
The SHAKTIMAN Subsoiler is a primary tractor-mounted implement designed to loosen, mix, and break up soil compaction at depths greater than traditional tillage. This tool enhances growth and yield in crops where soil compaction is an issue. While most tractor-mounted cultivation tools penetrate surface soil to depths of 15-30 cm, the SHAKTIMAN Subsoiler reaches almost twice those depths, effectively breaking up soil compaction and loosening the soil.
This deeper loosening increases fissuring, improving aeration and water infiltration, and creating a larger volume for root development. The SHAKTIMAN Subsoiler ensures the elimination of soil compaction, promoting healthier crop growth.
* The Company reserves absolute rights to modify the specifications of machine and components therein without any prior notice.
Advantages
- Eliminates soil compaction to improve soil structure
- Facilitate Proper air circulation & water infiltration in land
- Facilitate Deeper roots growth for fast plant growth & healthy plant
- Increase Plant yield upto 50%
- Less tyre Slippage
- Low fuel consumption because of uniquely designed tines and blades
Features
- Frame Made of High Tensile Material
- Blade and Tine Made of Boron Steel
- Tyne Protection Cover
- Working Width Adjustment
- Stand Loacking Provision
- Roller / Clod Cracker
Technical Specification
| Description | UOM | SSS-1 T | SSS-2 T | SSS-3 T |
|---|---|---|---|---|
| Length | mm | 1020 | 2130 | 2130 |
| Width | mm | 1200 | 1300 | 1300 |
| Height | mm | 1455 | 1455 | 1455 |
| Interbody Distance | mm | _ | 1000-1800 | 500-900 |
| Working Depth | mm | 550 | 550 | 550 |
| Tractor Power | kw/hp | 30/40 & above | 40/55 & above | 50/68 & above |
| Category | _ | CAT-2 | CAT-2 | CAT-2 |
| Weight | kg | 270 | 395 | 460 |
