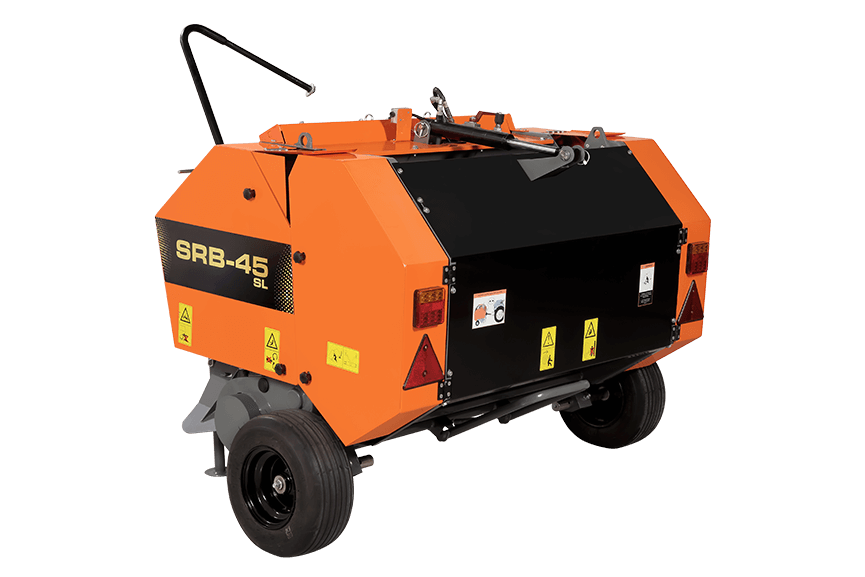

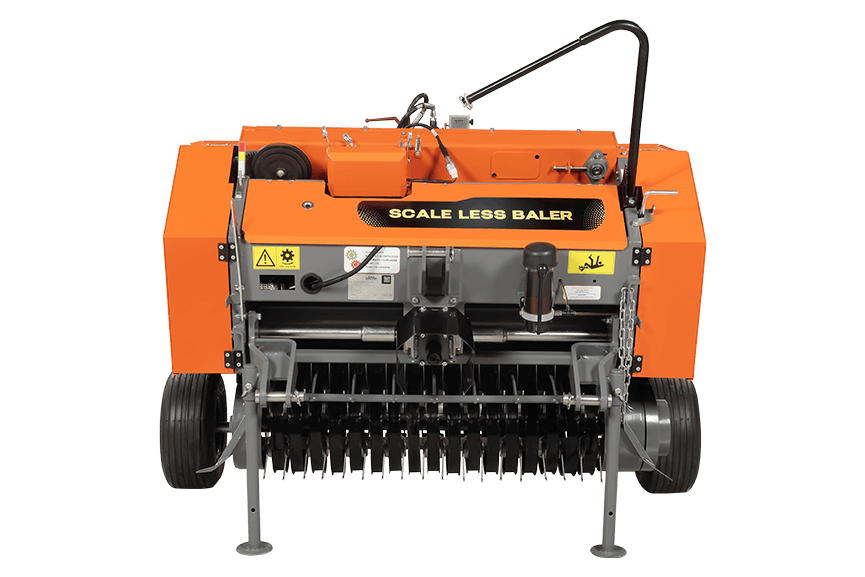

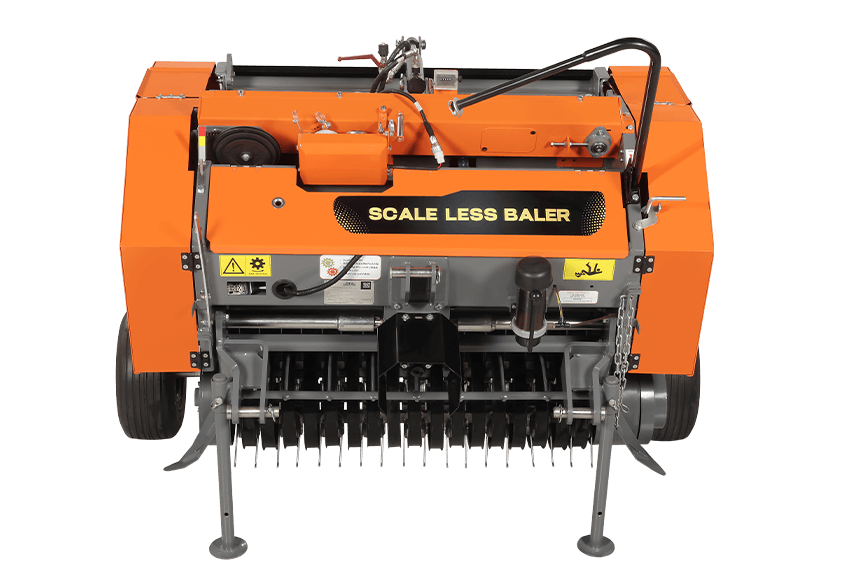

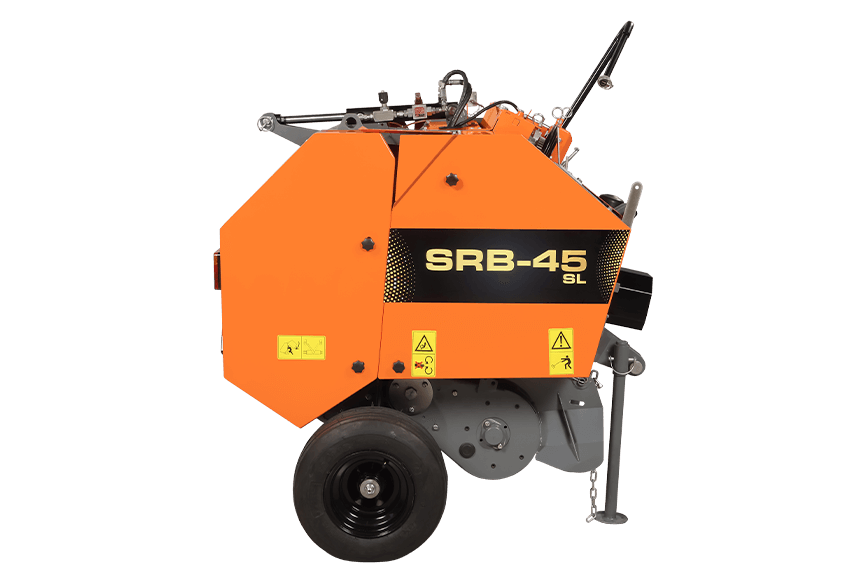

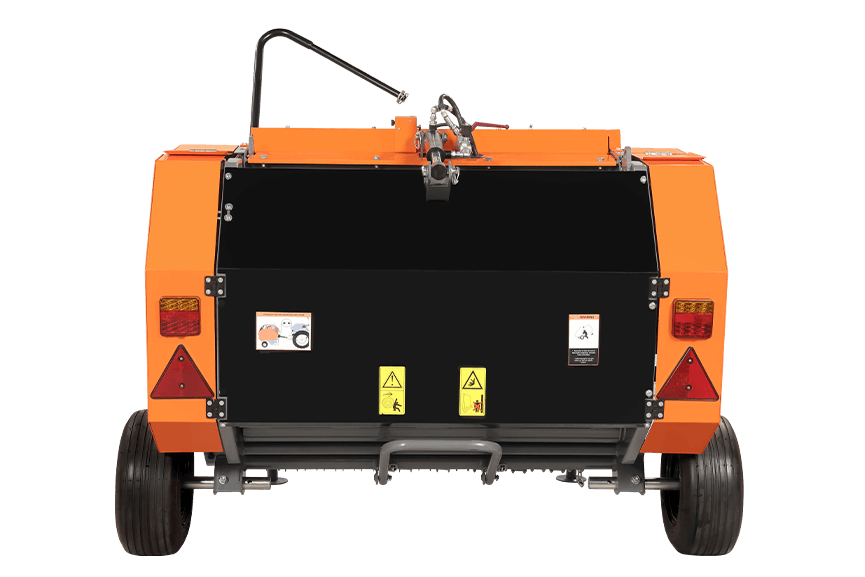

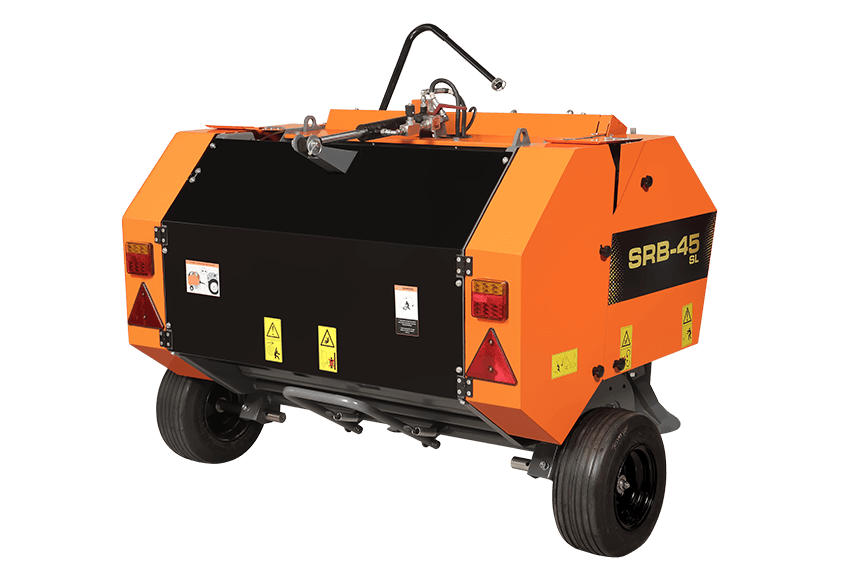

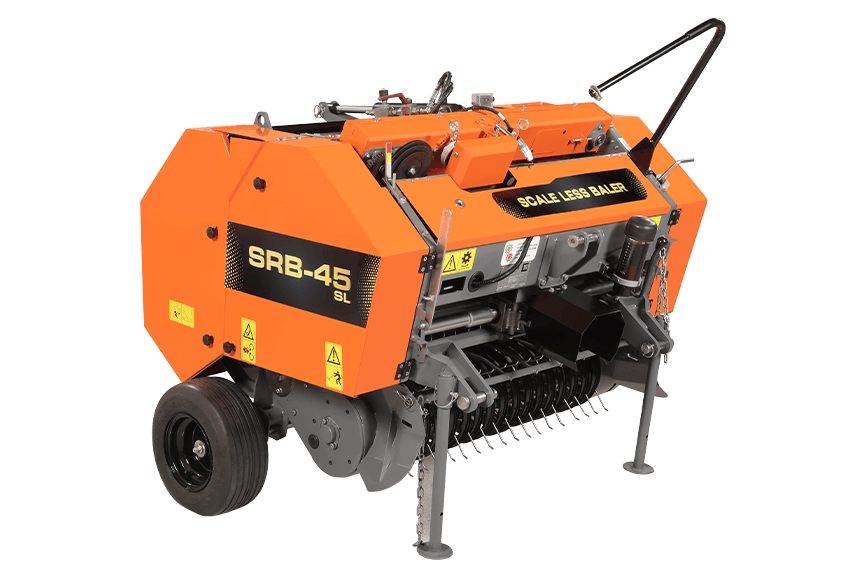

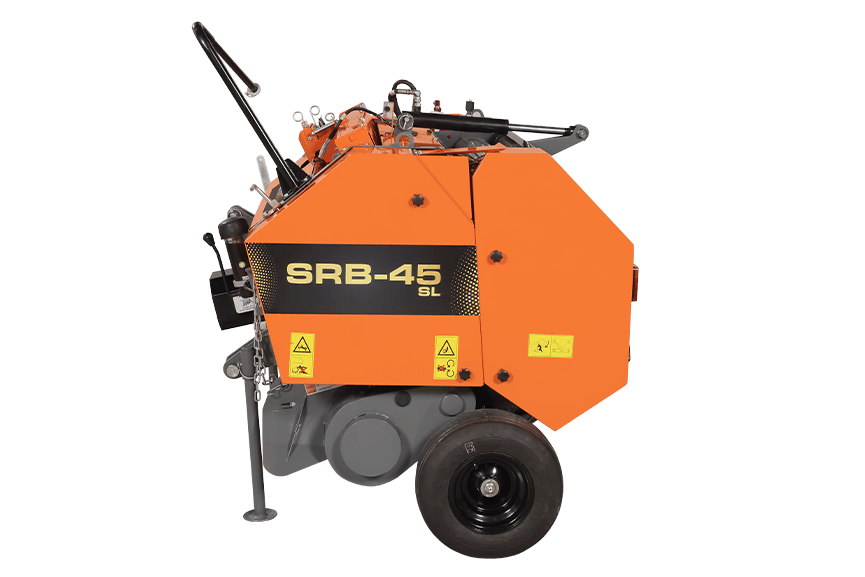

Scale Less Baler – SRB 45 SL

The SHAKTIMAN SRB-45 is a compact mini round baler crafted to meet the needs of small farms and light-duty operations. With its Scale Less Binding Technology, it eliminates the hassle of onboard weighing scales and manual adjustments, making the baling process simpler and stress-free. Its compact size makes it easy to handle even in smaller fields, while still ensuring consistent bale formation with smooth operation. Designed for reduced maintenance and downtime, the SRB-45 provides farmers with a safe, convenient, and highly reliable baling solution that fits perfectly into small-scale farming requirements.

* The Company reserves absolute rights to modify the specifications of machine and components therein without any prior notice.

Advantages

  • Continious Bailing: Allows for continuous baling without needing to stop and manually adjust the binding mechanism
  • Consistent Density: Create more uniform bale density, minimizing variations in compression throughout the bale
  • Reduced Labour Input: The automatic binding eliminates the need for manual intervention, reducing the labor required for bailing operation
  • Fewer Adjustments: Eliminates the need for manual adjustments, reducing the potential for operator error and downtime

Features

  • Scale Less Binding Unit
  • Five Row PickUp
  • Extended Side Plate
  • Aluminum Gearbox
  • Heavy Duty Chains
  • Shear Bolt
  • Heavy Duty Roller
  • Chain Lubrication System
  • Wider Tyres with Adjustable Track

Technical Specification

Parameter SRB 45
Overall Length (mm) 1245 x (1686 – 1826 ) x 1240
Overall Width (mm) Min. 1686
Max. 1826
Overall Height (mm) 1240
Working Width (mm) 1030
Ground Clearance (axle height) (mm) 180
Tractor Power (HP) & PTO speed (RPM) 27 HP – 50 HP (@ 540 )
Hitching System 3 Point Linkage CAT II
No. of Bars 5
No. of Tynes 90
No. of Rollers 10
Bale Size (mm) Diameter – 460, Width – 1040
Working Capacity (Bales/hr) 60 – 65 *
Bale Weight (kg) 14 – 30 **
Baler Weight (kg) 553 Approx.
Binding Twine Jute / Polypropylene
Binding Activation Scale Less Auto Binding system
Track Width (mm) Adjustable track ( 1515 – 1655 )
Tyre Size & Ply Rating 16 x 6.5 – 8 PR
Drive Line Safety Slip Clutch & Shear Bolt
Chamber Type Fixed with Steel Rollers

*It may vary depend on moisture content, **It may vary upon material availability and driving speed
