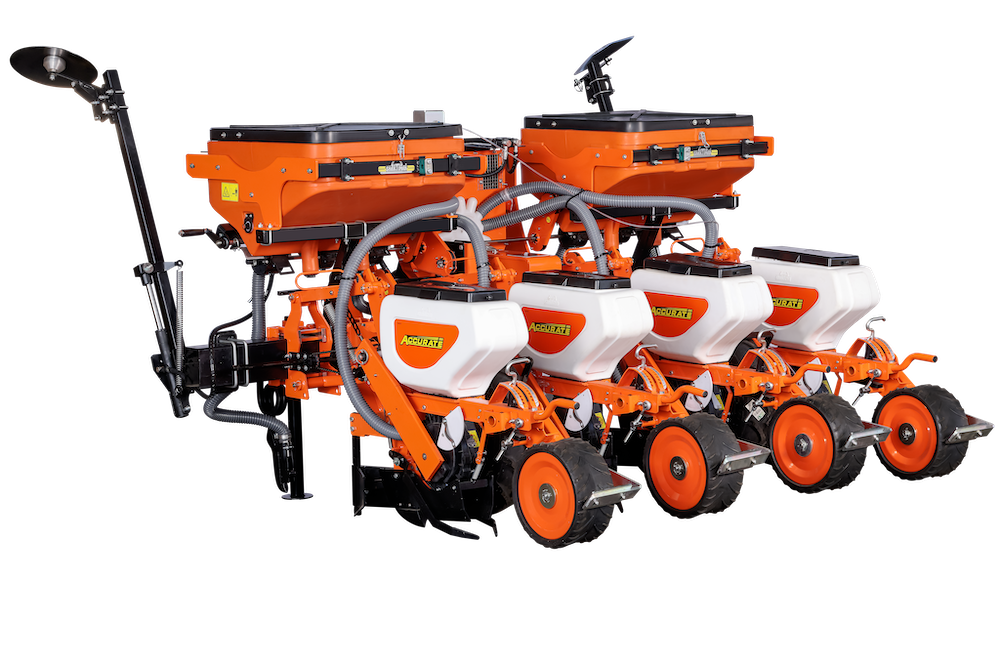

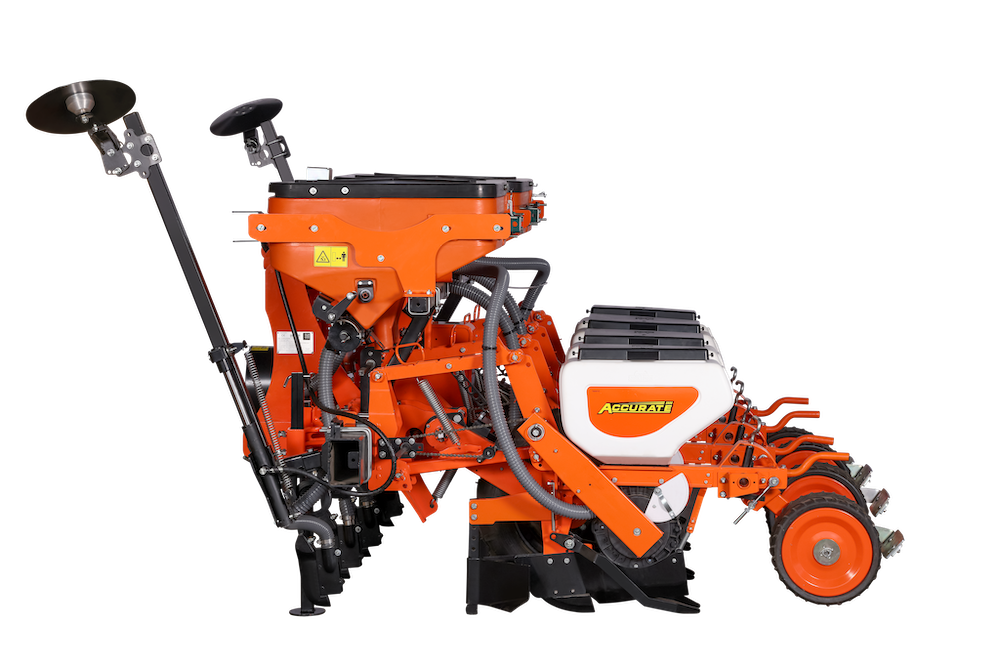

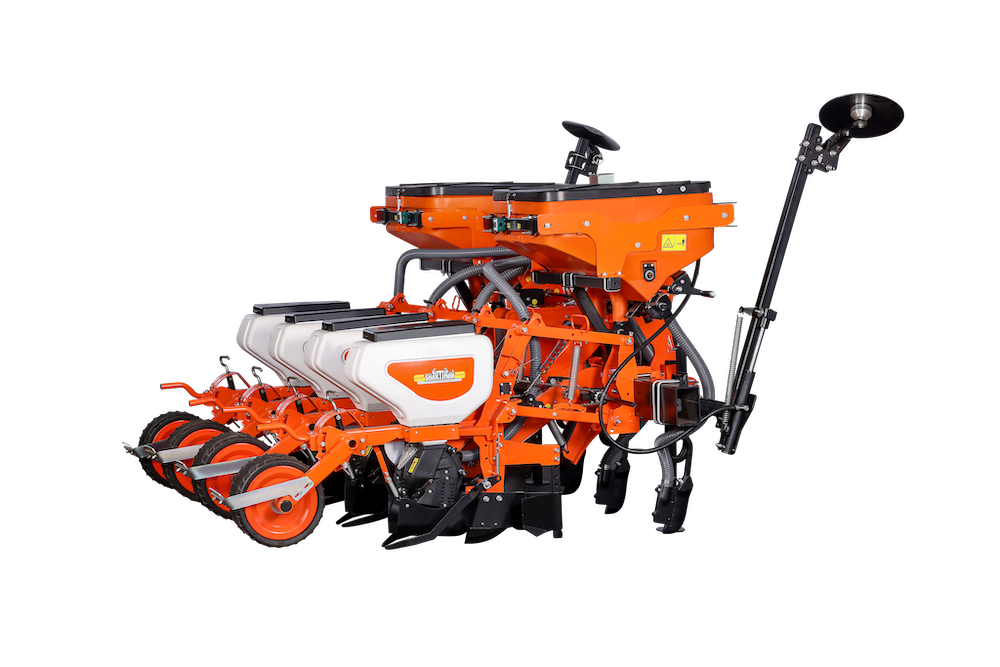

Pneumatic Planter SVPP 4 rows – Shoe type
Shaktiman Pneumatic Planter – Accurate (SVPP-250-4R) is engineered for accurate and efficient seed planting. Using a vacuum-based metering system, it ensures precise seed pickup and uniform placement at the correct spacing and depth. Designed for high-speed operation with minimal seed damage and low maintenance, SVPP handles a wide range of seed types and is ideal for crops such as corn, soybeans, sunflowers, cotton, and vegetables.
* The Company reserves absolute rights to modify the specifications of machine and components therein without any prior notice.
Advantages
- High Precision: Accurate seed placement with uniform spacing and consistent depth.
- Zero Seed Loss: Prevents missing, doubling, or damage to seeds.
- Reduced Seed Wastage: Maximizes seed efficiency for better crop yield.
- Versatile Performance: Suitable for multiple crops and various soil conditions.
- Cost & Time Efficiency: Reduces labor costs and enhances sowing efficiency.
- Uniform Germination: Promotes even plant growth for improved yields.
- Adaptive Ground Contact: Fixed / Floating-type wheel consistent ground engagement.
Features
- Reduced Machine Weight
- Lower Seeder Unit Height For Accurate Seed Placement
- Fully Assembled With Movable Parts
- Robust Fixed / Floating Type Wheel
- V-shaped Soil Compactor
- Increased Gearbox Height With Close-type Cover Design
- Improved Mounting Mechanism
- Plastic Fertilizer Tank
- Proven Parallelogram Mechanism
- Shoe Furrow Opener
- Increased Thickness Of Seed Disc
- Row Marker
- Double Seed Eliminator
- Seed Hopper
- Auger Mechanism In Fertilizer Tank
Technical Specification
| Sl. No. | Parameter | SVPP-250-4R |
|---|---|---|
| 1 | Working Width (CM) | 300 |
| 2 | Seed Hopper Capacity (L) | 35/UNIT |
| 3 | Fertilization Hopper (L) | 340L (Plastic) (170 Lit each Tank) |
| 4 | Weight of the machine (KG) | 900 Kg (Unladden) |
| 5 | Row spacing (min-max) (cm) | 45cm to 75 cm |
| 6 | Frame type | Single Bar |
| 7 | Frame width in Transport Position (m) | 2.5 |
| 8 | Number of Seeding Units | 4 |
| 9 | Markers | With SA Hydraulic Control |
| 10 | Hitch | Cat-II |
| 11 | Overall Dimensions (mm) | |
| 12 | Length (mm) | 2200 |
| 13 | Width (mm) | 2800 |
| 14 | Height (mm) | 1750 |
| 15 | Power Requirement | 55 HP above (with min. 2000kg Hydraulic lift capacity) |
| 16 | Gearbox | 1 (19 ratios) |
| 17 | Number of Wheels | 2 |
| 18 | Drives | Chain Drive (One wheel drive to fertilizer unit, other drive to seeding unit) |
| 19 | Tyres | 5.00X15.00 rear Floating Wheel |
| 20 | Metering unit | Plastic type Metering unit |
| 21 | Frame type | Rectangle pipe (150X100X5) (no 3 point hitch Bolted) |
| 22 | Seeder mounting | C-type (U-bolt clamp) |
| 23 | Fertilizer showing type | Shoe type |
| 24 | Rear wheel | Farm flex gauge wheel (compactor wheel) |
| 25 | Seed covering | Shoe type with Seed coverer |
